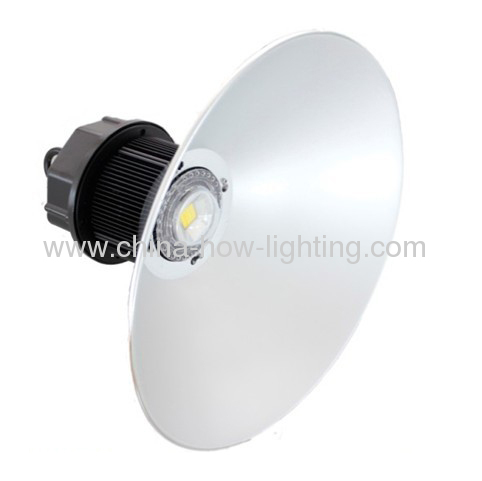

116W COB Highy Bay Light IP65 with Genesis or Bridgelux Chip from China manufacturer

116W COB Highy Bay Light IP65 with Genesis or Bridgelux Chip

Price:	110.0~150.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HL-HB-116W

Production Capacity: 100,000pcs per month

Delivery Date: Within 30 days after deposi...

Power: 116W

LED Qty: 1pc

Means of Transport: Ocean,Air

Packing: Each pc in blister packing ...

Voltage: DC30-36V

LED Chip Type: Genesis, Bridgelux

IP Rating: IP65

1. DC30-36V
2. COB Chip
3. IP65

Item No. : HL-HB-116W
Name : China Excellent Heat-dissipation 116W COB Highy Bay Light IP65 with Genesis or Bridgelux Chip China 116W COB Highy Bay Light IP65 with Genesis or Bridgelux Chip

China 116W COB Highy Bay Light IP65 with Genesis or Bridgelux Chip

Technique Data of China Excellent Heat-dissipation 116W COB Highy Bay Light IP65 with Genesis or Bridgelux Chip:

Model number	HL-HB-116W			Color rendering index	WW:Ra>68,PW/CW:Ra>75
LED consumptions	116W			Beam angle	45°/90°/120°
System Consumption	127W			Working voltage	DC30-36V
Led initial flux	WW	PW	CW	Input voltage	AC85-265V
Led initial flux	10800LM	10850LM	10830LM	Input voltage	AC85-265V
Power factor	>0.98			Frequency range	50-60HZ
Total hamornical distortion	<9%			LED junction temperature	<80°C
Power efficiency	>82%			Working temperature	-25~45°C
Light efficiency	>91%			IP grade	IP65
Installation height	6M	8M	10M	LED working life-span	>50000hrs
Average illuminance	66.5LUX	32LUX	17.4LUX	Certification	CE ROHS
Illuminance area	φ9.5M	φ15.5M	φ19M	Item dimension	￠500*471MM
Illminance uniformity	>0.4			Net weight / Gross weight	8.5KG / 9.0KG
Chip Brand	Genesis's LED chip (2Years Warranty)			Bridgelux LED chip (3Years Warranty)

Advantage of China Excellent Heat-dissipation 116W COB Highy Bay Light IP65 with Genesis or Bridgelux Chip:

This light has been applied a new heat-removal system, compared with the traditional cooling system, our new cooling system add heat transfer oil which can help the system remove heat from the whole light more quickly and efficiently.
