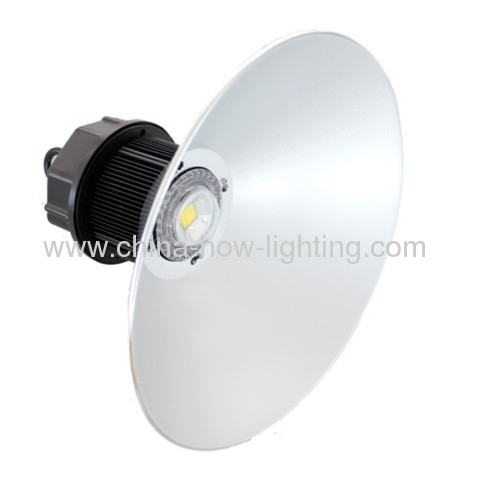

75W COB Highy Bay Light IP65 with Genesis or Bridgelux Chip
Price: |
85.0~110.0 USD |
Payment Terms: |
T/T,L/C,WU |
Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
HL-HB-75W
Production Capacity:
100,000pcs per month
Delivery Date:
Within 30 days after deposi...
Power:
75W
LED Qty:
1pc
Means of Transport:
Ocean,Air
Packing:
Each pc in blister packing ...
Voltage:
DC30-36V
LED Chip Type:
Genesis, Bridgelux
IP Rating:
IP65
1. DC30-36V
2. COB Chip
3. IP65
Item No. : HL-HB-75W
Name :
China 75W COB Highy Bay Light IP65 with Genesis or Bridgelux Chip
Technique Data of
China 75W COB Highy Bay Light IP65 with Genesis or Bridgelux Chip:
Model number | HL-HB-75W | Color rendering index | WW:Ra>68,PW/CW:Ra>75 |
LED consumptions | 75W | Beam angle | 45°/90°/120° |
System Consumption | 86W | Working voltage | DC30-36V |
Led initial flux | WW | PW | CW | Input voltage | AC85-265V |
7200LM | 7250LM | 7230LM |
Power factor | >0.98 | Frequency range | 50-60HZ |
Total hamornical distortion | <9% | LED junction temperature | <80°C |
Power efficiency | >82% | Working temperature | -25~45°C |
Light efficiency | >91% | IP grade | IP65 |
Installation height | 6M | 8M | 10M | LED working life-span | >50000hrs |
Average illuminance | >51.3LUX | >25.8LUX | >13.6LUX | Certification | CE ROHS |
Illuminance area | φ9.5M | φ15.5M | φ19M | Item dimension | ¢500*441MM |
Illminance uniformity | >0.4 | Net weight / Gross weight | 6.5KG / 7.0KG |
Chip Brand | Genesis's LED chip (2Years Warranty) | Bridgelux LED chip (3Years Warranty) |
Advantage of
China 75W COB Highy Bay Light IP65 with Genesis or Bridgelux Chip:
