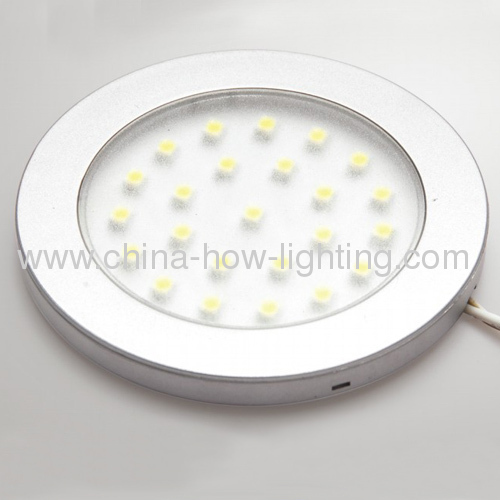

Flat LED Downlight with 3528SMD from China manufacturer

Price:	2.5~4.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HL-CDL-02

Production Capacity: 100,000pcs per month

Delivery Date: Within 30 days after deposi...

Power: 1.5W-2.8W

LED Qty: 24pcs, 36pcs

Means of Transport: Ocean,Air

Packing: Each pc in blister packing ...

Voltage: DC9.5-30V, DC12V-24V

LED Chip Type: 3528SMD, Epistar, Samsung, ...

Bean Angle: 90°, 120°

1. Flat LED Downlight with 3528SMD
2. Aluminium housing is good for heat dissipation
3 . Size : 68x7mm

Item No. : HL-CDL02
Name    : 1.5W-2.8W Flat LED Downlight with 3528SMD
LED Type: Epistar, Samsung, Korean Seoul Chip, 3528SMD
Size          : Dia. 68x7mm
Color Temperature : WW : 2700-3300K
                                       CW: 6000-6600K

Function Choice : normal control, point touch control
1.5W-2.8WFlat LED Downlight with 3528SMD

Description of 1.5W-2.8W Flat LED Downlight with 3528SMD:

Specification LED Qty (pcs) Input Votage (V) Power(W) Lumen (lm)
normal 24 12 1.7 110~155
point touch 24 12 1.7 110~155
wide Votage 24 9.5~30 1.5max 110~155
wide Votage +point touch 24 9.5~30 1.5max 110~155
normal 36 12 2.8 170~190
point touch 36 12 2.8 170~190
wide Votage 36 9.5~30 2.5max 170~190
wide Votage +point touch 36 12~24 2.5max 170~190

Installation of 1.5W-2.8W Flat LED Downlight with 3528SMD:

Connection Reference of 1.5W-2.8W Flat LED Downlight with 3528SMD:

Lighting Picture of 1.5W-2.8W Flat LED Downlight with 3528SMD:
